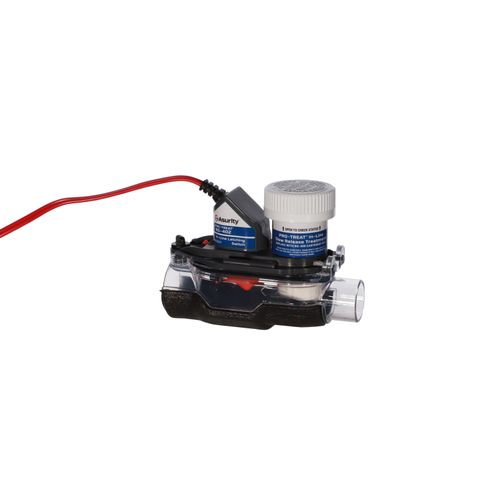

Latching Float Switch with Inline Treatment Delivery System

Item#: BG-402

Asurity® BG-402 is an inline latching condensate safety switch with a patent-pending auto-dosing treatment delivery system. As the condensate water passes through the switch and over the treatment tablets, the condensate line is constantly dosed with treatment to keep the lines clear and flowing properly, for up to 6 months.

Feature 1:

Auto-dosing treatment keeps drain lines clean, saving time and money by preventing buildup

Feature 2:

Safe, non-corrosive and 100% soluble condensate line treatment

Feature 3:

Zinc, Copper and Pro-Treat® tablets defend against clogs.

Feature 4:

Prevents pan overflow and damage

Feature 5:

Switch shuts down the HVAC system to prevent flood damage

Feature 6:

Prevents short cycling that can lead to equipment damage

Feature 7:

Latching mechanism eliminates intermittent condensate tripping

Feature 8:

The system will remain off, even if the water has receded, until manually reset

Feature 9:

Easy push button to reset

Product Type:

Pipe-Mounted

Application:

Pipe Mounted Flood Prevention Switch

UL Listed:

Yes

Alert Indicator:

Visual

Electrical Classification:

Class 2

Electrical Connection Type:

2-Wire

Plenum Rated:

Rated Current (A):

Rated Voltage:

24VAC

Switch Mode:

Normally closed (N/C)

Test Switch / Button:

Yes

Ducted or Ductless:

Ducted

UPC:

0095247203017

Primary UoM:

Each

Primary Depth (inches):

8.66

Primary Width (inches):

2.28

Primary Height (inches):

6.18

Primary Weight (lbs):

0.66

Quick Ship Flag:

Order Multiple:
