Hef-T-Bracket™

Hef-T-Bracket – Medium, 18in. 500lbs, with hinge

Item#: 230-B2M

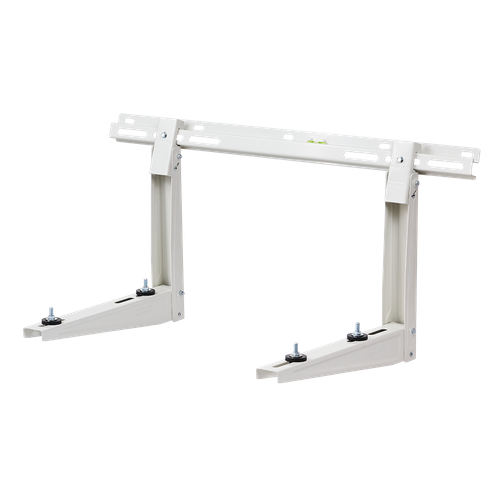

The Hef-T-Bracket™ 230-B2M is a medium size wall bracket used for supporting ductless condensers. Hef-T-Bracket features a cross bar that is attached to the wall, and two L-shaped brackets that are hooked and bolted into place on the cross bar. The arms/shelf is 18" long to support medium sized condensers.

Feature 1:
Made from 16 GA steel and powder coated for durability.
Feature 2:
Arms are adjustable to customize for equipment width requirements
Feature 3:
All necessary hardware included for assembly and fastening to a wall. Anti-vibration washers also provided
Feature 4:
Holds up to 176 pounds per arm.

Includes:
Hardware_Vibration Isolation
Adjustable:
Yes
Base / Mount:
Wall
Application:
Ductless Condenser
Load Capacity:
250 lbs per Arm
Material:
Powder Coated Steel
Rating:
Not Rated
Arm or Shelf Length:
18 in.
Mounting Method:
Concrete_Siding_Block_Brick_Stucco
No. of Arms:
2
Product Width:
37.8 in.
Ducted or Ductless:
Ductless

UPC:
0095247127443
Primary UoM:
Each
Primary Depth (inches):
38
Primary Width (inches):
3.5
Primary Height (inches):
3.7
Primary Weight (lbs):
10.5
Quick Ship Flag:
No
Order Multiple:
1
