Asurity®

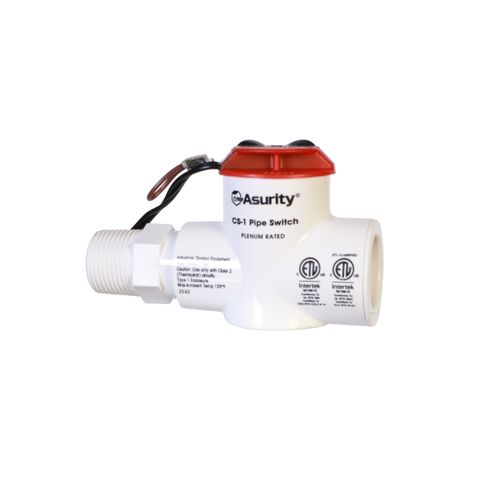

Pipe-Mounted Tee Float Switch

Item#: CS-1
The Asurity® CS-1 Pipe-Mounted Tee Switch is simple to install and service, and extremely reliable. Three installation configurations include horizonal and vertical drain line and auxiliary primary drain pan. As water level in the drainpipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system, preventing water from overflowing and causing damage to doors, walls and ceilings. The durable, precise magnetic reed switch will not rust, operating smoothly every time.

Feature 1:
This switch shuts down the HVAC system to prevent flood damage
Feature 2:
For Standard and Plenum Rated installations in Primary or Auxiliary lines
Feature 3:
LED illuminates when condensate line is blocked
Feature 4:
Built-in protection against power surges increases reliability
Feature 5:
Three installation configurations for increased flexibility
Feature 6:
This switch is Plenum rated

Includes:
N/A
Product Type:
Inline
Application:
Condensate Drain Lines
UL Listed:
No
Alert Indicator:
Visual
Electrical Classification:
Class 2
Electrical Connection Type:
2-Wire
Plenum Rated:
Yes
Rated Current (A):
1.5
Rated Voltage:
24VAC
Switch Mode:
Normally closed (N/C)
Test Switch / Button:
Yes
Ducted or Ductless:
Ducted
Color Code:
N/A
Switch Type:
SPST

UPC:
0095247148844
Primary UoM:
Each
Primary Depth (inches):
8.23
Primary Width (inches):
5.43
Primary Height (inches):
1.97
Primary Weight (lbs):
0.44
Quick Ship Flag:
No
Order Multiple:
10
