Equipment Stand - 1000
Equipment Stand - 1000
Quick-Sling®

Horizontal Furnace/ Air Handler mounting stand. 3 dimensionally adjustable. Holds up to 500 lbs.

Item#: QSTD1000

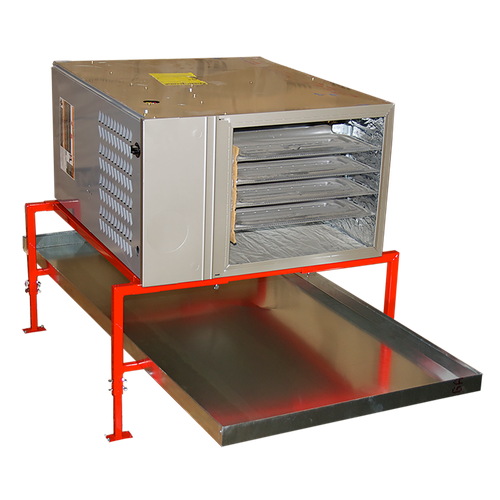

The Quick-Sling® QSTD1000 is a horizontal furnace or air handler equipment mounting stand. These stands are made of 14 gauge powder coated square tubing that cuts down on vibration and can hold up to 500 lbs. They are 3 dimensionally adjustable to make installation fast and easy. A secondary drain pan shelf is provided for convenient install & future maintenance (drain pan not included). Hardware and vibration isolation kit is included.

Feature 1:
3 dimensionally adjustable: Height: 12-22 in., Width: 32-48 in., Length: 32-48 in.
Feature 2:
Legs extend in 1” increments using thumb screws & wing nuts for speed and versatility.
Feature 3:
Each foot attaches to wood using 4 zip screws for stability & security if desired
Feature 4:
Made of 14 gauge powder coated steel
Feature 5:
Load capacity 500 lbs.
Feature 6:
20 points of vibration isolation are provided using four 50-durometer self adhesive rubber pads & 16 rubber washers.
Feature 7:
Secondary pan shelf is provided for convenient install & future maintenance (Drain pan not included).

Adjustable:
Yes
Base / Mount:
Free Standing
Color:
Tan
Application:
Air Handler_Furnace
Load Capacity:
500 lbs
Material:
Powder Coated Steel
Ducted or Ductless:
Ducted

UPC:
0095247158041
Primary UoM:
Each
Primary Depth (inches):
33
Primary Width (inches):
18
Primary Height (inches):
2
Primary Weight (lbs):
27
Quick Ship Flag:
No
Order Multiple:
1

Drawings
