Imperial®

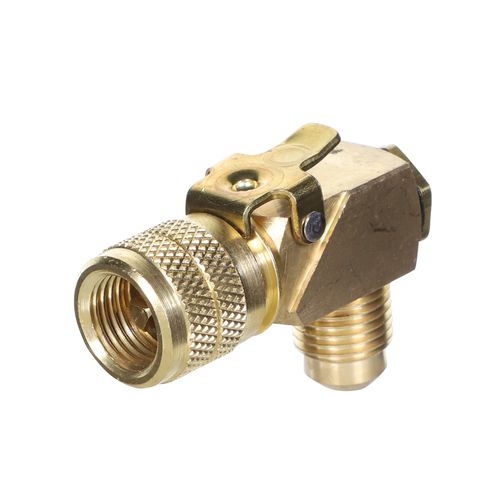

Kwik Coupler Set, 90 Deg., 5/16in SAE

Item#: 27-C
Automatic full depression of core valves without adjustment, regardless of core position. Coupler halves separately connect to access fitting and hose end, then easy push/pull operation automatically opens or closes system without loss of refrigerant. Automatic shut-off of hose ends permits discharging high side hose through manifold into low side. Simplifies operation of charging critical amount of refrigerant into small systems.

Feature 1:
Automatic full depression of core valves without adjustment, regardless of core position.
Feature 2:
Coupler halves separately connect to access fitting and hose end, then easy push/pull operation automatically opens or closes system without loss of refrigerant.
Feature 3:
Automatic shut-off of hose ends permits discharging high side hose through manifold into low side.
Feature 4:
Eliminates hazardous discharge of refrigerant and oil from system when disconnecting hose.
Feature 5:
Simplifies operation of charging critical amount of refrigerant into small systems.
Feature 6:
Prevents finger burn when disconnecting especially servicing heat pumps in cold weather.
Feature 7:
Core depressors in hose ends no longer necessary speeds servicing of systems with hand valves.

Connector Style:
90 Elbow
Ducted or Ductless:
Both Ducted and Ductless
Connection Size:
5/16 in.
Connection Type:
45° Flare

UPC:
0699244100975
Primary UoM:
Each
Primary Depth (inches):
5.5
Primary Width (inches):
4
Primary Height (inches):
0.65
Primary Weight (lbs):
0.2
Quick Ship Flag:
No
Order Multiple:
1
